PLATE WALL PANELS

Americlad® plate wall panel systems incorporate a solid, non-laminated metal substrate. Plate wall panel systems are one of the most flexible and durable products available in the marketplace. These panels are highly recommended for high traffic areas where a high impact resistance is required.

​​

These systems are also best utilized when a custom color is needed, the overall customization of the panel gives it a great advantage over composite panel systems.

​

All plate wall panels are available in a perforated or expanded metal configurations. They can be back routed for sharper edge appearance to give it a clean, contemporary look.

Also available in a wide variety of substrate:

  • Aluminum (.080", .090", .125", .190", .250")

  • Stainless Steel (18 ga, 16 ga, 14 ga, and 11 ga)

  • Zinc ( 1.0 mm and 1.5 mm)

Rain Screen Systems:

Americlad® rainscreen systems are a dry joint systems that are offered in a back ventilated or a pressure equalized system. They offer a caulk free design that is crisp, clean, and a very contemporary look.  These systems are designed to offer the ability to control the impact of wind driven rain and manage any water that may penetrate the wall system.  A weather barrier is required behind the plate panels to keep the building free of water damage.

​

Wet Joint Systems:

Also known as a barrier wall system, wet joint systems are a more traditional type of panel system that include a mechanically fastened clip attachment. They have exposed caulking at the panel joints with welded and ground smooth corners for weatherproofing the panel system. Our AC-3000 and AC-3300 are both a wet joint system. The AC-3300 sliding clip eliminates the need to line up, clamp down, and fasten every clip on the panel by simply sliding the clip down the patented groove, routed into the panel. The Sliding Clip is sure to save you time and money installing them in the field.

Custom brakemetal, AC-3000, Aluminum Plate Panels, barrier wall systems, backer rod and caulk, back routed, ac, mcm, highland hospital,
Radiused AC-3000 Aluminum plate wall panels.

AC-3000

The Americlad® AC-3000 Aluminum Plate Panel System is a barrier wall system manufactured from aluminum plate material.



Americlad AC-3000 system features include:

  • Formed and return flange and a slotted clip to accommodate expansion and contraction

  • ​Wide variety of colors from the manufacturer's standard color selection

  • Superior flatness

  • Extreme durability, great for high traffic areas

  • ​Available in natural metals, including zinc, brushed aluminum, copper & stainless steel

  • Joints utilize a traditional backer rod and caulk system, which are field applied for a complete and sealed installation

AC-3000
Americlad AC-3100BR aluminum plate panels on the new Kaiser Permanente building.

AC-3100BR

The Americlad® AC-3100 Back Routed Plate Panel System is a barrier wall system manufactured from aluminum plate material.



The system features a route-and-return fabrication method. Americlad® AC-3100 system features include:

  • Back Routed corners for crisp, sharp corners

  • Formed and return flange and a slotted clip to accommodate expansion and contraction

  • Wide variety of colors from the manufacturer's standard color selection

  • Superior Flatness

  • Extreme durability, great for high traffic areas

  • Available in natural metals, including zinc, brushed aluminum, copper & stainless steel

  • Joints utilize a traditional backer rod and caulk system, which are field applied for a complete and sealed installation

AC-3100
AC-3200
Amriclad AC-3200 ECO composite dry joint panel sytem that features a dry look appearance with no exposed fasteners or caulking.
The AC-3200 EVO with no exposed fasteners is great for any porject were design flexabiity is a must!

AC-3200

No Exposed Fasteners

The Americlad® AC-3200 Composite Dry Joint Panel System is a rainscreen panel system manufactured from aluminum plate material. The system incorporates perimeter extrusions and clips.



Americlad® AC-3200 system features include:

  • Wide variety of colors from the manufacturer's standard color selection

  • Available in Back Ventilated or Pressure Equalized systems

  • Available in natural metals, including zinc, brushed aluminum, copper & stainless steel

  • System features our Dry-Look appearance with no exposed fasteners or caulking

AC-3200 BV
AC-3300
The AC-3200 BV aluminum plate

AC-3200 BV

Fully Tested System!

The Americlad® AC-3200 BV Aluminum Plate Dry Joint Panel System is a rainscreen back ventilated panel system incorporating perimeter extrusions and clips.



Americlad® AC-3200 BV system features include:

  • Manufactured out of solid aluminum plate

  • Panels have formed return flanges

  • Endless color selection

  • Dry-Look™ appearance with no caulking

Slide on clip, AC-1300, Barrier wall system, backer rod and caulk, ACM, MCM, Composite, panel system, easy install, how to install

AC-3300

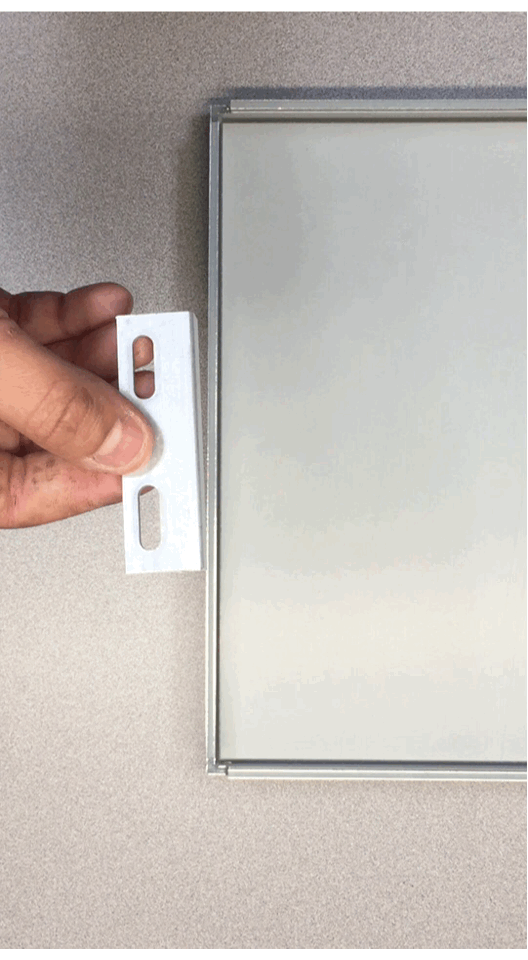

Utilizing our PATENTED Sliding Clip

(US Patent #8,225,572)

The Americlad® AC-3300 Plate Panel System with Patented Sliding Clip is a barrier wall system manufactured from an aluminum plate material.



Americlad® AC-3300 system features include:

  • A track is routed into the panel to accommodate our exclusive, patented sliding clip

  • The sliding clip easily slides into location for fastening back to the wall structure

  • The sliding clip accommodates expansion and contraction by requiring only one clip be fastened to each panel, allowing the others to slide freely

  • The sliding clip dramatically reduces installation and field labor, resulting in significant cost savings for the installer

  • Wide variety of colors from the manufacturer's standard color selection

  • Available in natural metals, including zinc, brushed aluminum, copper & stainless steel

  • Joints utilize a traditional backer rod and caulk system, which are field applied for a complete and sealed installation
